ZOTAC GAMING GeForce RTX-5070-12GB Twin Edge OC Edition (3 Year Warranty)
๐ฎ ZOTAC GAMING GeForce RTX 5070 Twin Edge OC Edition (12GB)
๐ฅ Compact Size. Massive Next-Gen Blackwell Power.
Ready to dominate next-gen gaming and intensive AI workloads without filling up your entire chassis? The ZOTAC GAMING GeForce RTX 5070 Twin Edge OC Edition brings NVIDIAโs ultra-powerful Blackwell architecture into a sleek, compact dual-fan form factor. ๐ Factory overclocked out of the box, this card unleashes raw graphics performance, jaw-dropping ray tracing, and next-level AI frame generation. โจ
Equipped with 12GB of cutting-edge, ultra-fast GDDR7 memory on a 192-bit bus, it easily handles maxed-out texture packs and high-refresh-rate gaming. Thanks to its compact design, it is officially certified as an NVIDIA SFF-Ready Enthusiast card, making it the ultimate drop-in upgrade for Mini-ITX systems or smaller desktop builds without sacrificing thermal performance! ๐๏ธ๐จ
๐ Key Highlights:
-
๐ Powered by NVIDIA Blackwell: Experience massive efficiency gains, 4th Gen Ray Tracing cores, and 5th Gen Tensor cores for groundbreaking visual realism.
-
๐ค NVIDIA DLSS 4 & 988 AI TOPS: Multiply your frame rates using advanced AI-powered frame generation and neural rendering.
-
๐ Next-Gen 12GB GDDR7 Memory: Blazing fast 28 Gbps memory speed ensures ultra-low latency and maximum bandwidth for rendering and texturing.
-

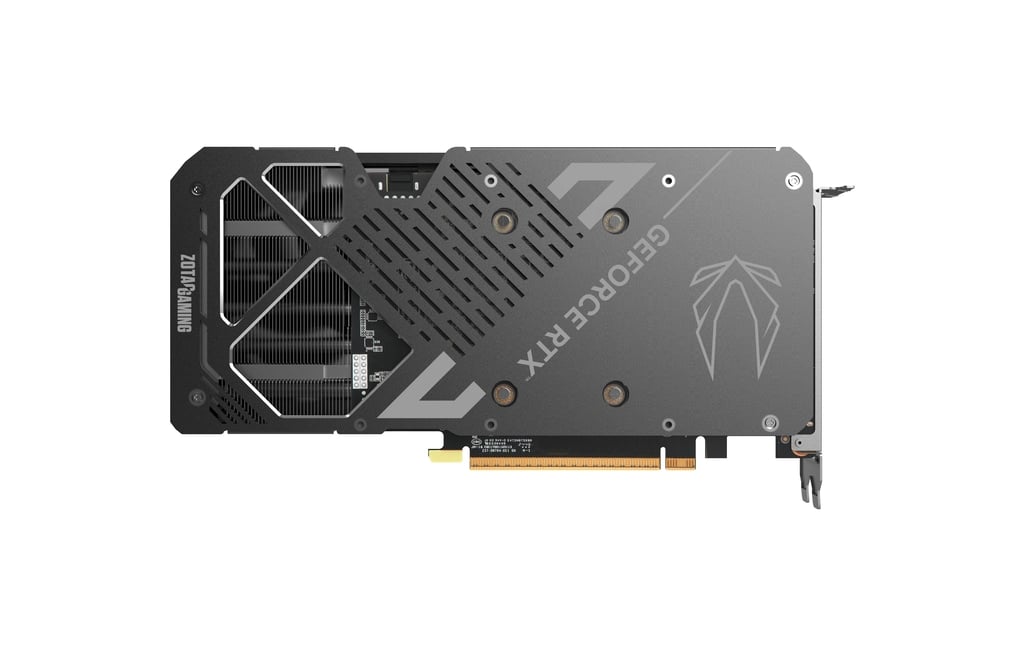

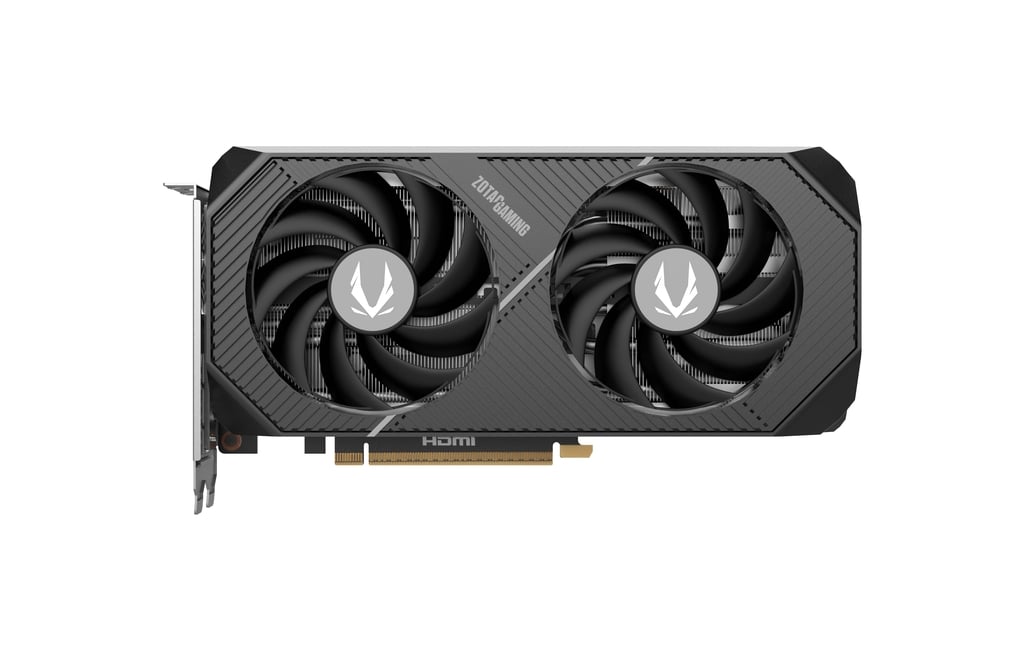

โ๏ธ IceStorm 2.0 Advanced Cooling: Outfitted with dual 90mm BladeLink fans, heavy-duty copper heatpipes, and a full metal backplate for structural rigidity and passive heat dissipation.
-
๐คซ FREEZE Fan Stop Technology: Silent operations during low-load tasks. The fans stop spinning entirely when you are idling or casual browsing to eliminate unnecessary noise.
-
๐ฅ๏ธ DisplayPort 2.1b Integration: Ready for ultra-high-res futures, supporting up to 4K @ 480Hz or 8K @ 165Hz with DSC.
๐ Technical Specifications
| Feature | Specification |
| ๐ท๏ธ Brand / Model | ZOTAC GAMING GeForce RTX 5070 Twin Edge OC Edition |
| ๐๏ธ GPU Architecture | NVIDIA Blackwell |
| ๐ข Product Code (MPN) | ZT-B50700H-10P (Black) / ZT-B50700Q-10P (White) |
| ๐ง CUDA Cores | 6,144 |
| ๐ Engine Clock (Boost) | 2542 MHz (Factory Overclocked) |
| ๐พ Video Memory | 12 GB GDDR7 |
| โก Memory Clock Speed | 28 Gbps |
| ๐ Memory Bus Interface | 192-bit |
| ๐ค AI Performance | 988 AI TOPS |
| ๐ Bus Interface | PCI Express 5.0 x16 |
| ๐ฅ๏ธ Display Outputs |

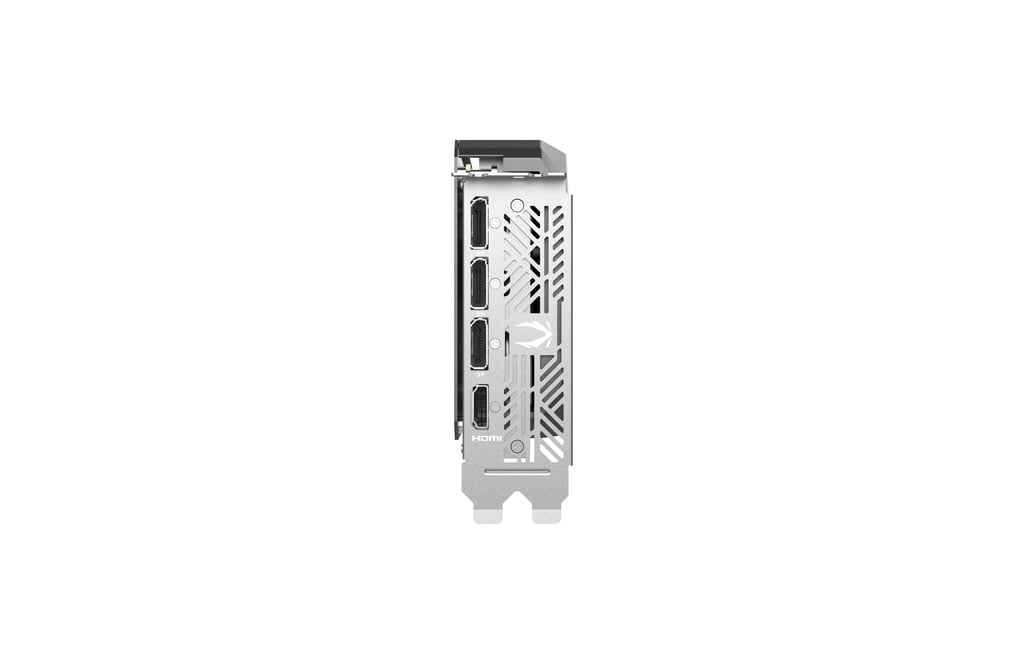

3 x DisplayPort 2.1b (Up to 4K@480Hz / 8K@165Hz with DSC) 1 x HDMI 2.1b (Supports 4K@120Hz HDR / 8K@60Hz HDR) |
| ๐ก๏ธ HDCP Support | Version 2.3 |
| ๐ฎ Multi-Display Capability | Quad Display (Up to 4 monitors simultaneously) |
| ๐ฅ Graphics API Support | Microsoft DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6 |
| โก Power Consumption (TDP) | 250 W |
| ๐ Recommended PSU | 650 W |
| ๐ Power Input Connector | 1 x 12V-2x6 PCIe Gen 5 connector (2x 8-pin to 16-pin adapter included) |
| ๐ Slot Size / Form Factor | 2-Slot / SFF-Ready Enthusiast Card |
| ๐ Dimensions (L x W x H) | $241.5 \text{ mm} \times 120.1 \text{ mm} \times 40.6 \text{ mm}$ ($9.5 \times 4.7 \times 1.6 \text{ in}$) |
