MSI GeForce RTX™ 5060 8G SHADOW 2X OC

🔥 Next-Gen Ada Performance • GDDR7 Speed • Dual-Fan Cooling

💠 Key Specifications

🛍 Marketing Name

• GeForce RTX™ 5060 8G SHADOW 2X OC

🆔 Model Name

• G5060-8S2C

🎮 Graphics Processing Unit

• NVIDIA® GeForce RTX™ 5060

🔗 Interface

• PCI Express® Gen 5 x16 (uses x8)

⚡ Performance

🚀 Core Clocks

• Extreme Performance: 2535 MHz (via MSI Center)

• Boost Clock: 2527 MHz

🧮 CUDA® Cores

• 3840 Units

💾 Memory Specification

⚡ Memory Speed

• 28 Gbps

📦 Memory Capacity

• 8GB GDDR7

🛣 Memory Bus

• 128-bit

🖥 Display Output

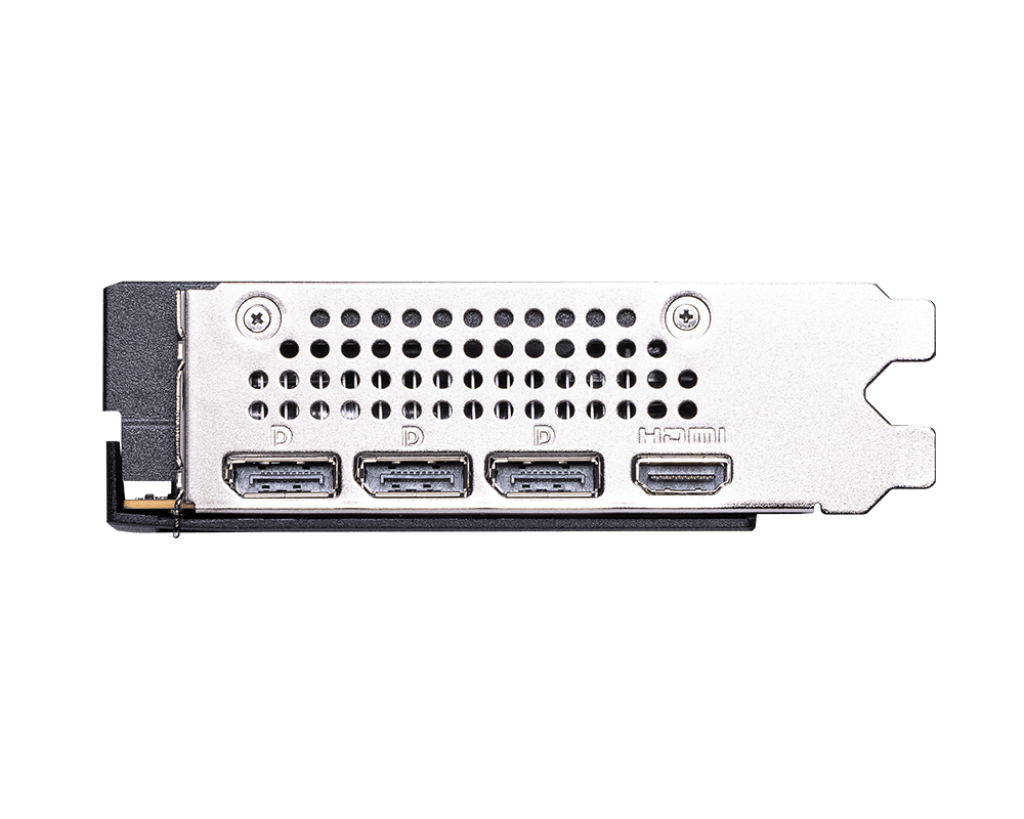

🔌 Output Ports

• 3 × DisplayPort 2.1b

• 1 × HDMI 2.1b
  (Supports 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

🔐 HDCP Support

• Yes

📺 Digital Maximum Resolution

• 7680 × 4320

🖥 Maximum Displays

• 4

🎯 G-SYNC® Technology

• Supported

⚙ API Support

🧱 DirectX Version

• 12 Ultimate

📘 OpenGL Version

• 4.6

🔌 Power Requirements

⚡ Power Consumption

• 145W

🔋 Power Connectors

• 1 × 8-pin

🔧 Recommended PSU

• 550W

📏 Physical Specifications

📐 Card Dimensions

• 197 × 120 × 40 mm

⚖ Weight (Card / Package)

• 493 g / 814 g
