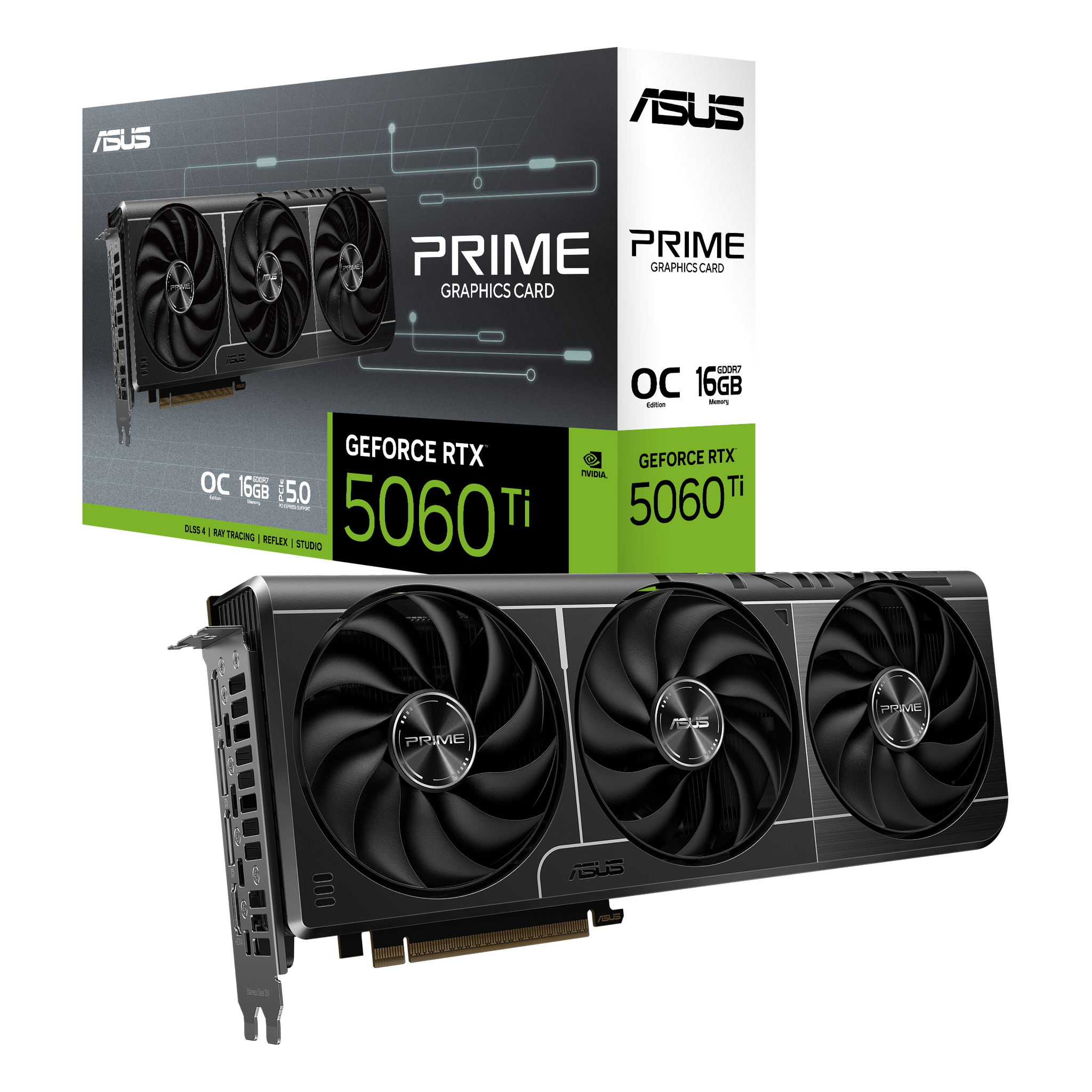

ASUS PRIME GeForce RTX™ 5060 Ti 16GB OC

✨ Reliable • Next-Gen GDDR7 • Premium PRIME Series Cooling

💠 Key Specifications

🆔 Model

• PRIME-RTX5060TI-O16G

🎮 Graphic Engine

• NVIDIA® GeForce RTX™ 5060 Ti

🤖 AI Performance

• 759 TOPS

🔗 Bus Standard

• PCI Express 5.0

🎨 OpenGL Support

• OpenGL® 4.6

⚡ Performance

🚀 Engine Clock

• OC Mode: 2647 MHz

• Default Mode: 2617 MHz (Boost Clock)

🧮 CUDA Cores

• 4608

💾 Memory Specification

⚡ Memory Speed

• 28 Gbps

📦 Video Memory

• 16GB GDDR7

🛣 Memory Interface

• 128-bit

🖥 Display Output & Resolution

🔍 Digital Max Resolution

• 7680 × 4320

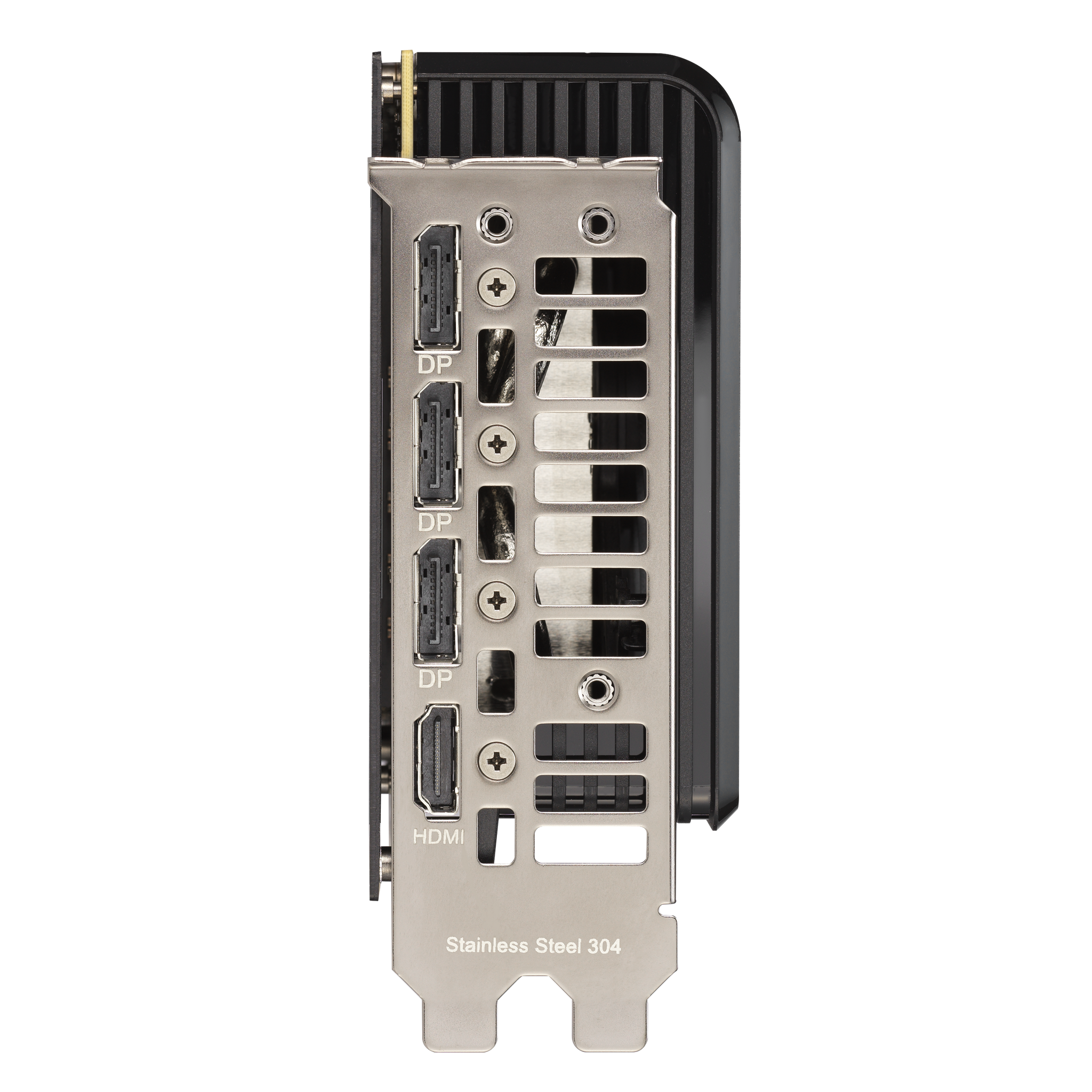

🔌 Interface / Ports

• 1 × HDMI 2.1b (Native)

• 3 × DisplayPort 2.1b (Native)

🔐 HDCP Support

• Yes (2.3)

📺 Maximum Display Support

• 4 Displays

🔗 NVLink / Crossfire

• Not Supported

📦 Accessories Included

• 1 × SpeedSetup Manual

• 1 × ASUS Velcro Hook & Loop

• 1 × Thank You Card

💻 Software

• ASUS GPU Tweak III

• MuseTree

• GeForce Game Ready Driver

• Studio Driver
  (Download from ASUS Support Site)

📏 Physical Specifications

📐 Dimensions

• 304 × 120 × 50 mm

🧩 Slot

• 2.5-Slot Design

🔌 Power Requirements

⚡ Recommended PSU

• 550W

🔋 Power Connectors

• 1 × 8-pin

📌 Important Notes

• Wattage recommendation is based on a fully overclocked CPU + GPU configuration.

• Specs may change without notice; check with your supplier for final details.

• Ensure you use the latest ASUS specifications to avoid any third-party claims or issues.
