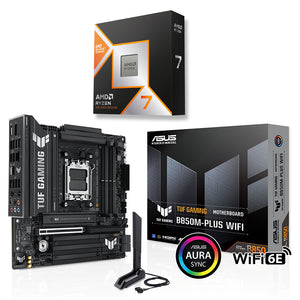

AMD Ryzen 7 9800X3D & Asus TUF GAMING B850M-PLUS WIFI (3 Year Warranty) **Instock**
🧠 AMD Ryzen 7 9800X3D – Official Specs
Click here to see product specs on the official site
-
Architecture: Zen 5 (Granite Ridge), built on TSMC 4 nm process
-
Cores / Threads: 8 cores / 16 threads
-
Base Clock: 4.7 GHz
-
Max Boost Clock: up to 5.2 GHz
-
Cache:
-
L2 Cache: 8 MB (1MB per core)
-
L3 Cache: 96 MB (32 MB + 64 MB 3D V‑Cache)
-
-
TDP: 120 W
-
Socket: AM5
-
Memory Support: Dual-channel DDR5‑5600 (up to 192 GB)
-
PCIe Support: PCIe 5.0, unlocked for overclocking
-
Integrated Graphics: AMD Radeon Graphics (on-die)
📈 Performance Highlights
-
Up to 8% faster than Ryzen 7 7800X3D in gaming
-
Up to 30–35% better gaming performance compared to Intel Core Ultra 9 285K (based on 3rd-party tests)
ASUS TUF GAMING B850M-PLUS WIFI – Key Specifications
Click here to see product specs on the official site
Category | Details |
---|---|
CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors |
Chipset | AMD B850 |
Memory Support | 4 x DDR5 DIMM slots, up to 256GB; Supports up to 8000+ MT/s (OC); ECC and Non-ECC Un-buffered DIMMs; Dual Channel Memory Architecture; Supports AMD EXPO™; ASUS Enhanced Memory Profile (AEMP) |
Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 mode with Ryzen™ 9000 & 7000 Series); 1 x PCIe 4.0 x1 slot |
Storage | 3 x M.2 slots: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x4); 4 x SATA 6Gb/s ports |
USB Ports | Rear: 1 x USB 20Gbps Type-C®, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 4 x USB 2.0; Front: 1 x USB 10Gbps Type-C®, headers for additional USB ports |
LAN | Realtek 2.5Gb Ethernet |
Wireless | Wi-Fi 6E; Bluetooth 5.3 |
Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC; Supports DTS Audio Processing, Audio Shielding, Premium Audio Capacitors, and Dedicated Audio PCB Layers |
Display Interfaces | 1 x HDMI™ port (supports 4K@60Hz); 1 x DisplayPort (supports up to 8K@30Hz) |
Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
