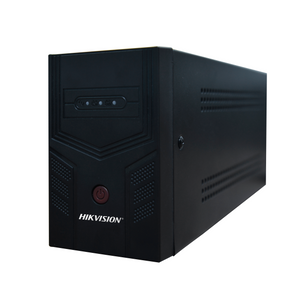

HIKVISION 600VA DS-UPS600-Q/T Official 1 Year Warranty **Instock**

🔋 UPS Specification (600VA / 360W)

⚡ Power

• Capacity: 600 VA / 360 W

🔌 Input

• Voltage Range: 140–290 VAC ±5 VAC; 70–145 VAC / 140–290 VAC ±5 VAC (Automatic Identification)

• Frequency: 50/60 Hz (Self-adaptive)

• Plug Type: UK BS1363, Type B (NEMA 5-15), Type N

🔄 Output

• Frequency: 50/60 Hz (Self-adaptive)

• Transfer Time: 2–6 ms (Typical), 10 ms (Max)

• Waveform: Simulated Sine Wave

• Voltage Range: 198–242 VAC / 99–121 VAC

• Outlet Type: Universal, Type B (NEMA 5-15), Type N

• Outlet Number: 2 / 4 + 2 bypass / 4

🔋 Battery

• Type: 12V / 7Ah × 1 (Lead-Acid)

• Recharge Time: 4–6 Hours (to 90% capacity)

• Typical Backup Time:

  • 30W Load → 89 Minutes

  • 60W Load → 38 Minutes

  • 150W Load → 8 Minutes

🖥️ Interface

• Communication Ports: None

🛡️ Protection

• Short Circuit

• Surge Protection

• Overload Protection

• Overcharge & Overdischarge Protection

🔔 Indicator & Alarm

• Display: LED

• Alarm Modes:

  • Charging Mode (DC): Every 6 sec

  • Low Battery: Every 1 sec

  • Overload: Every 0.5 sec

  • Fault: Continuous sound

🌡️ General

• Operating Temperature: 0 °C – 40 °C (32 °F – 104 °F)

• Humidity: 0% – 90% (Non-condensing)

• Dimensions: 335 × 87 × 143 mm (13.35" × 3.43" × 5.63")

• Weight: ~4.6 kg (10.1 lb)
