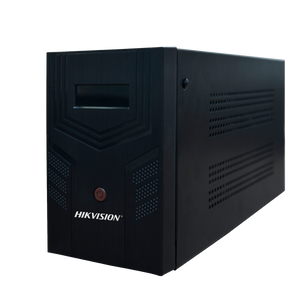

HIKVISION 2000VA DS-UPS2000-Q/T Official 1 Year Warranty **Instock**

⚡ Power

• Capacity: 2000 VA / 1200 W

🔋 Battery

• Type: 12 V / 9 Ah × 2 pcs (Lead-acid)

• Recharge Time: 4–6 hrs (to 90% capacity)

• Typical Backup Time:

  • 60W load → 116 mins

  • 150W load → 44 mins

  • 300W load → 20 mins

🔄 Input

• Voltage Range: 145–280 VAC ±5VAC; 70–145 VAC ±5VAC

• Frequency: 50/60 Hz self-adaptive

• Plug Type: UK BS1363, Type B (NEMA 5-15)

🔌 Output

• Frequency: 50/60 Hz self-adaptive

• Transfer Time: 2–6 ms (typical), 10 ms (max)

• Waveform: Simulated Sine Wave

• Voltage Range: 198–242 VAC / 99–121 VAC

• Outlet Type: Universal; Type B (NEMA 5-15)

• Outlet Number: 4 (4 + 4 bypass)

🛡️ Protection

• Surge protection

• Overload protection

• Discharge protection

• Short-circuit protection

📊 Display & Indicators

• LCD Screen: Input Voltage, Output Voltage, Battery capacity, Load level

• Alarm:

  • Charging Mode: every 6 sec

  • Low Battery: every 1 sec

  • Overload: every 0.5 sec

  • Fault: continuous sound

🌡️ General

• Operating Temperature: 0–40 °C (32–104 °F)

• Operating Humidity: 0–90% (non-condensing)

• Dimensions: 360 × 122 × 195 mm (14.17" × 4.80" × 7.68")

• Weight: ~12.4 kg (27.3 lbs)
