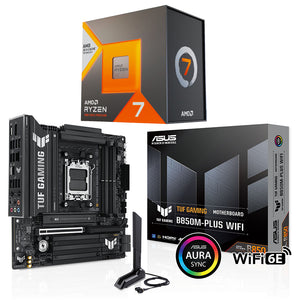

AMD Ryzen 7 7800X3D & Asus TUF GAMING B850M-PLUS WIFI (3 Year Warranty) **Instock**
AMD Ryzen™ 7 7800X3D – Key Specifications
Click here to see product specs on the official site
| Specification | Details |
|---|---|
| Architecture | Zen 4 |
| Cores / Threads | 8 / 16 |
| Base Clock | 4.2 GHz |
| Max Boost Clock | Up to 5.0 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Total Cache | 104 MB |
| Default TDP | 120W |
| Socket Compatibility | AM5 |
| Integrated Graphics | None (requires discrete GPU) |
| PCIe® Version | PCIe 5.0 |
| Memory Support | DDR5 |
| Launch Date | April 2023 |
ASUS TUF GAMING B850M-PLUS WIFI – Key Specifications
Click here to see product specs on the official site
| Category | Details |
|---|---|
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| Memory Support | 4 x DDR5 DIMM slots, up to 256GB; Supports up to 8000+ MT/s (OC); ECC and Non-ECC Un-buffered DIMMs; Dual Channel Memory Architecture; Supports AMD EXPO™; ASUS Enhanced Memory Profile (AEMP) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 mode with Ryzen™ 9000 & 7000 Series); 1 x PCIe 4.0 x1 slot |
| Storage | 3 x M.2 slots: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x4); 4 x SATA 6Gb/s ports |
| USB Ports | Rear: 1 x USB 20Gbps Type-C®, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 4 x USB 2.0; Front: 1 x USB 10Gbps Type-C®, headers for additional USB ports |
| LAN | Realtek 2.5Gb Ethernet |
| Wireless | Wi-Fi 6E; Bluetooth 5.3 |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC; Supports DTS Audio Processing, Audio Shielding, Premium Audio Capacitors, and Dedicated Audio PCB Layers |
| Display Interfaces | 1 x HDMI™ port (supports 4K@60Hz); 1 x DisplayPort (supports up to 8K@30Hz) |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
🔧 Key Features
-
Robust Power Solution: 14+2+1 DrMOS power stages rated at 80A, ensuring stable power delivery for high-performance CPUs.
-
Comprehensive Cooling: Enlarged VRM heatsinks, M.2 heatsinks, and multiple fan headers to maintain optimal temperatures.
-
DIY-Friendly Design: Features like PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, and BIOS FlashBack™ Button simplify the building process.
-
Aesthetic Customization: Supports Aura Sync RGB lighting with 3 x Addressable Gen 2 headers for personalized lighting effects.
