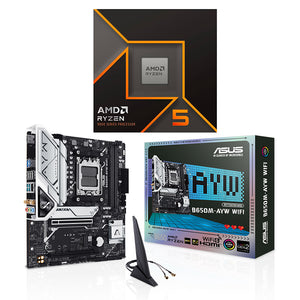

AMD Ryzen 5 9600X & Asus B650M-AYW WIFI (3 Year Warranty) **Instock**
AMD Ryzen™ 5 9600X – Key Specifications
Click here to see product specs on the official site
| Specification | Details |
|---|---|
| Architecture | Zen 5 |
| Cores / Threads | 6 / 12 |
| Base Clock | 3.9 GHz |
| Max Boost Clock | Up to 5.4 GHz |
| L1 Cache | 480 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Total Cache | 38 MB |
| Default TDP | 65W |
| PCIe® Version | PCIe 5.0 |
| Unlocked for Overclocking | Yes |
| Integrated Graphics | None (requires discrete GPU) |
| Socket Compatibility | AM5 |
| Memory Support | DDR5 |
| Launch Date | Q3 2024 |
ASUS B650M-AYW WIFI – Key Specifications
Click here to see product specs on the official site
| Category | Details |
|---|---|
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory Support | 2 x DDR5 DIMM slots, up to 96GB; Supports up to 8000+ MT/s (OC); ECC and Non-ECC Un-buffered DIMMs; Dual Channel Memory Architecture; Supports AMD EXPO™; OptiMem II |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x16/x8/x4 modes depending on CPU); 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage | 2 x M.2 slots (M.2_1 supports PCIe 5.0 x4 mode; M.2_2 supports PCIe 4.0 x4/x2 mode depending on CPU); 4 x SATA 6Gb/s ports |
| USB Ports | Rear: 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A); Front: 1 x USB 5Gbps (Type-C®), headers for 2 x USB 5Gbps (Type-A) and 4 x USB 2.0 (Type-A) |
| LAN | Realtek 2.5Gb Ethernet |
| Wireless | Wi-Fi 6; Bluetooth 5.2 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking; Up to 24-Bit/192 kHz playback; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers |
| Display Interfaces | 1 x HDMI™ port (supports 4K@60Hz as specified in HDMI 2.1) |
| Form Factor | Micro-ATX (24.4 cm x 22.1 cm) |
🔧 Key Features
-
DDR5 Memory Support: Enhanced performance with support for DDR5 memory modules up to 8000+ MT/s (OC).
-
PCIe 5.0 Ready: M.2_1 slot supports PCIe 5.0 x4 mode for next-generation storage devices.
-
Comprehensive Cooling: Features include 1 x 4-pin CPU Fan header and 3 x 4-pin Chassis Fan headers.
-
USB Connectivity: Multiple USB ports including USB 10Gbps, USB 5Gbps, and USB 2.0 for versatile connectivity options.
-
Audio Boost: Delivers studio-grade sound quality with premium audio components.
-
Aura Sync RGB: Supports customizable RGB lighting with 3 x Addressable Gen 2 headers
